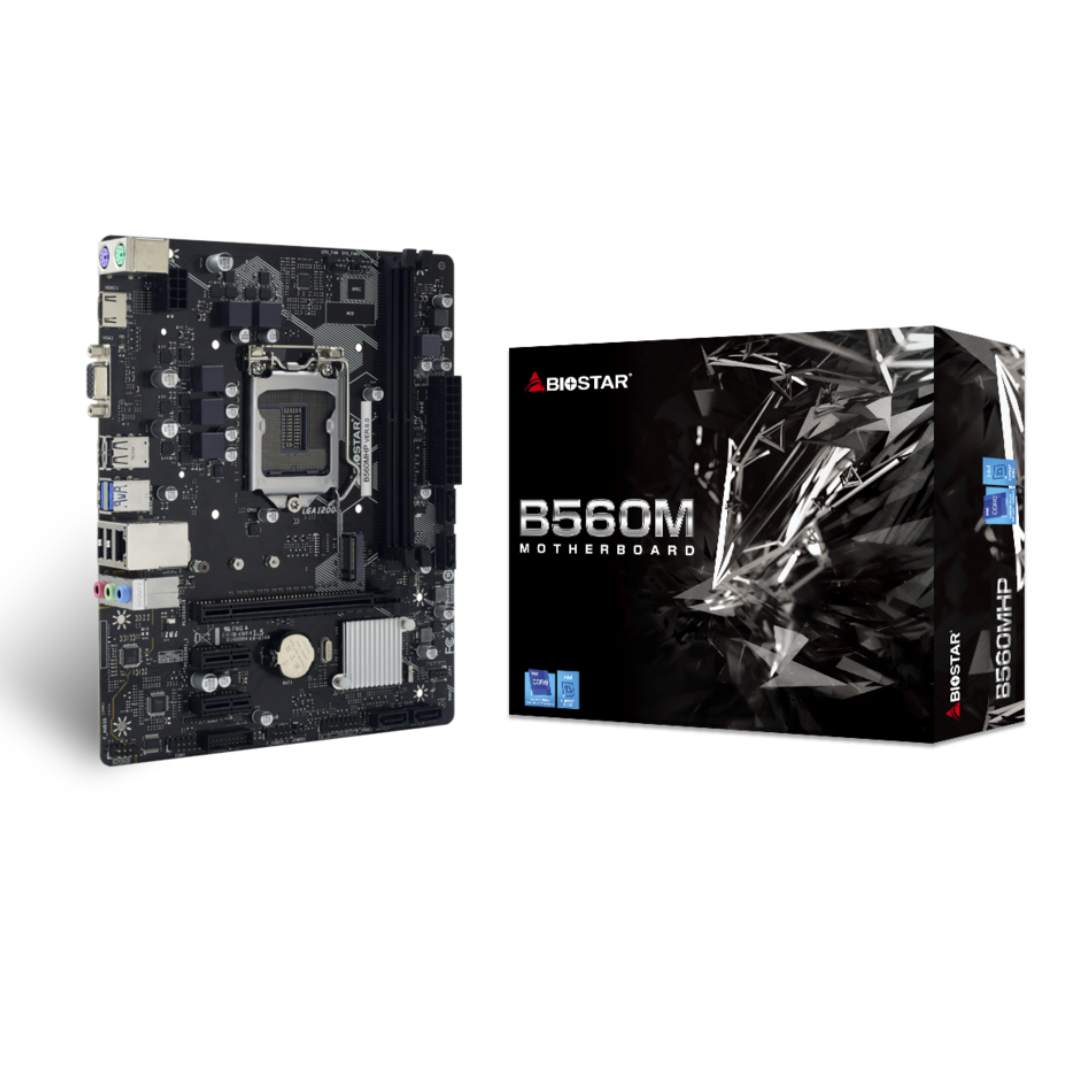

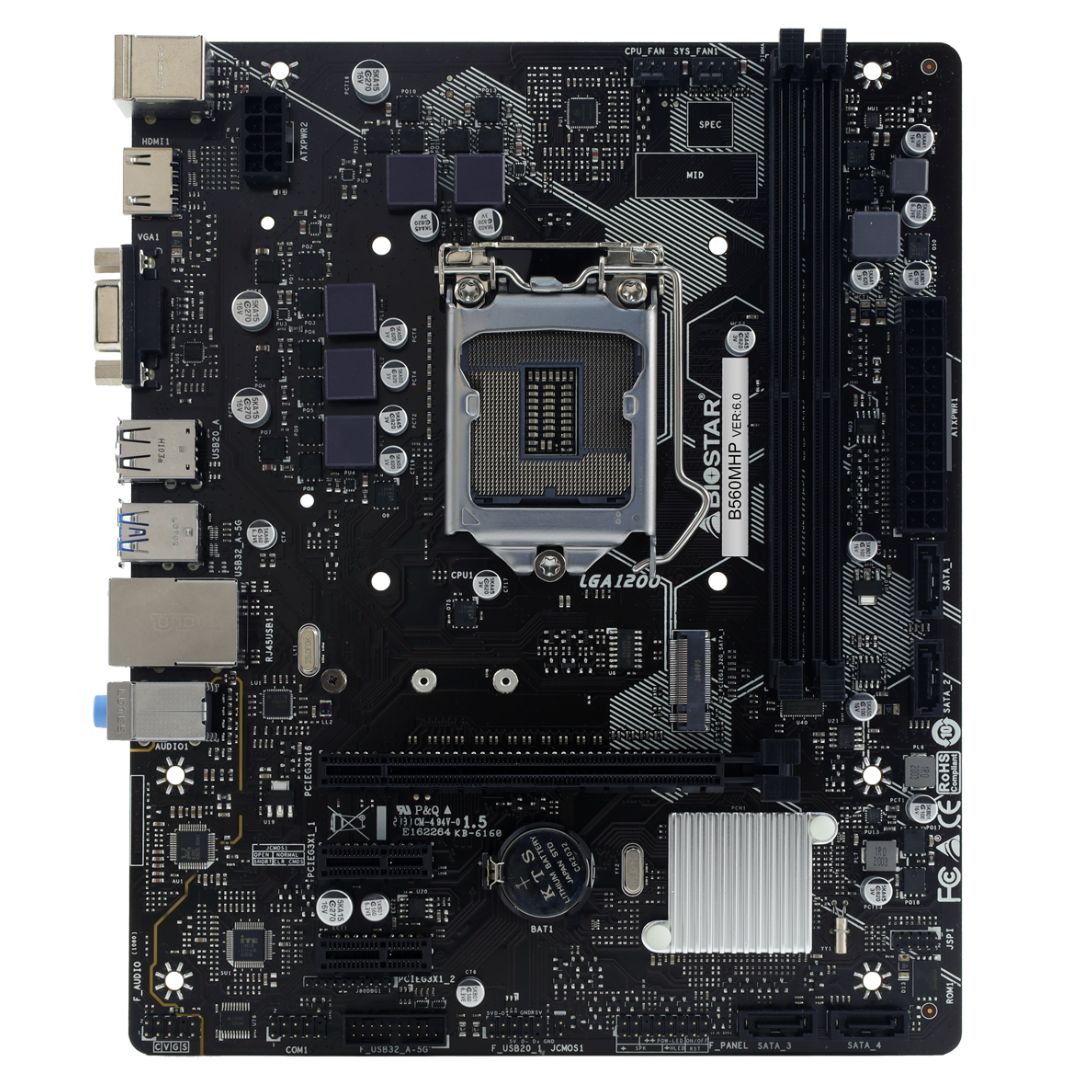

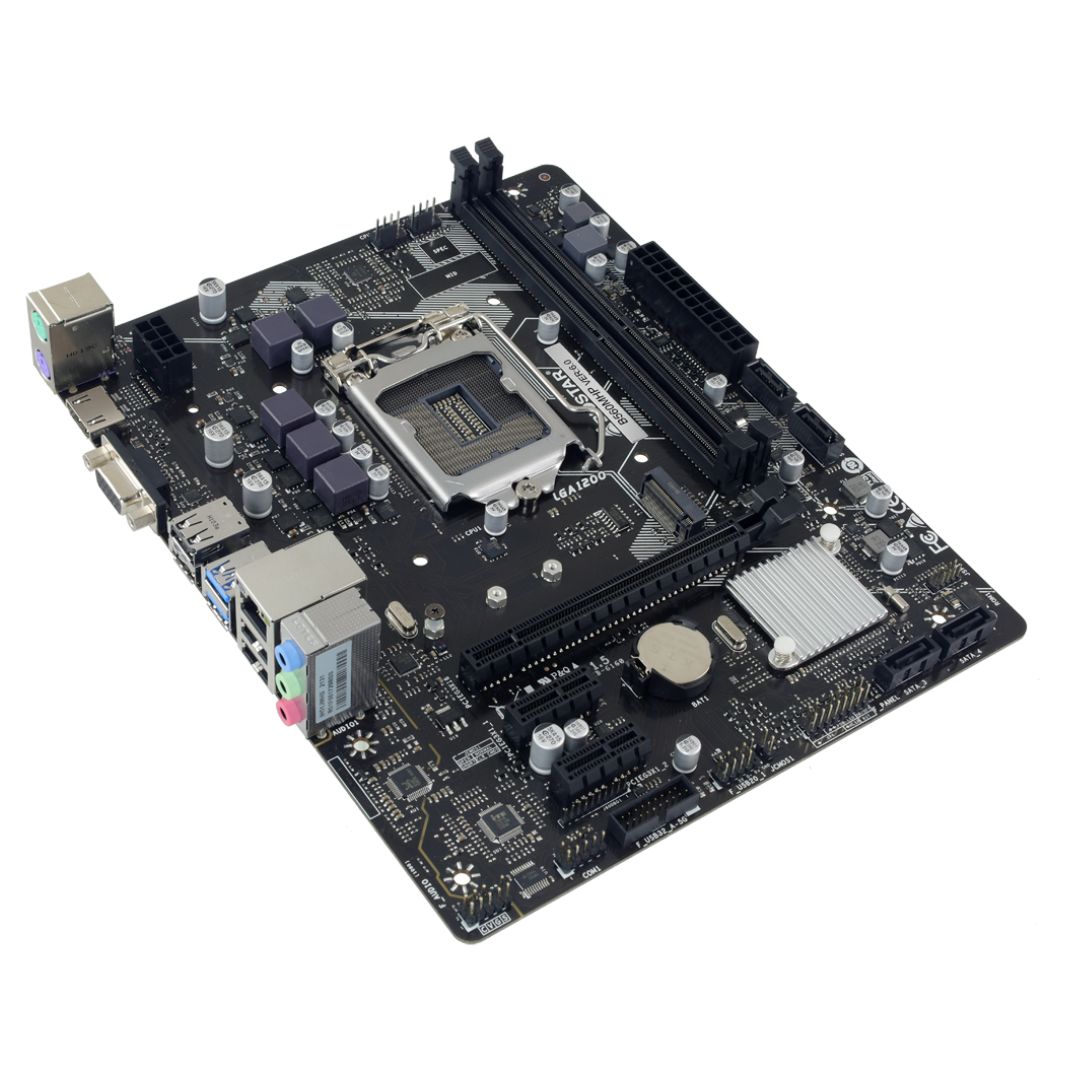

B0-B76B-DJKV
| Brand | Biostar |
| CPU Socket | LGA 1200 |
| RAM Memory Technology | DDR4 |
| Compatible Processors | intel_core |
| Chipset Type | B560 |
3 days Replacement by Brand Service Center
4-5 Days
Brand warranty
BIOSTAR
Share your thoughts with other customers
| Feature | Specification |
|---|---|
| Chipset | Intel B560 |
| CPU Support | Socket 1200 for 10th / 11th Gen Intel Core™, Pentium, Celeron processors |
| Memory Support | Dual Channel DDR4 1866/2133/2400/2666/2933/3200 |
| 2 x DDR4 DIMM slots, Max. 64GB | |
| Supports non-ECC 4/8/16/32GB DDR4 modules | |
| Integrated Video | DX12 support, HDCP |
| Storage | 4 x SATA III (6Gb/s) connectors |
| 1 x M.2 (M Key) socket (supports PCIe 3.0 x4 and SATA III) | |
| LAN | Intel I219V, 10/100/1000 Mb/s auto negotiation |
| Audio Codec | Realtek ALC887, 7.1 Channels, High Definition Audio |
| USB Ports | 4 x USB 3.2 (Gen 1) ports (2 rear, 2 internal) |
| 6 x USB 2.0 ports (4 rear, 2 internal) | |
| Expansion Slots | 2 x PCIe 3.0 x1 slots |
| 1 x PCIe 3.0/4.0 x16 slot (depending on CPU) | |

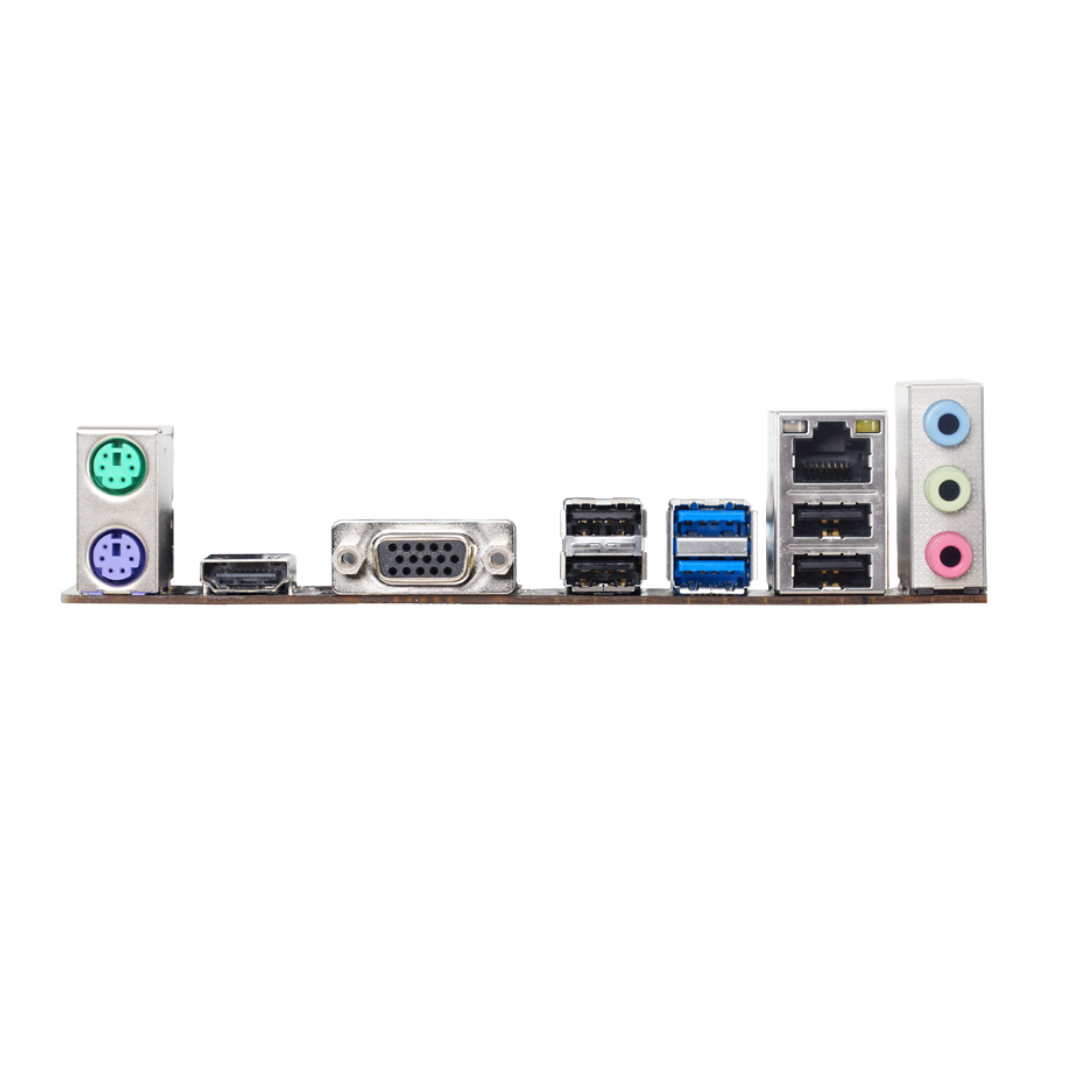

| Rear I/O Ports | 1 x PS/2 Keyboard, 1 x PS/2 Mouse |
| 1 x HDMI Port, 1 x VGA Port | |
| 2 x USB 3.2 (Gen 1) Ports, 4 x USB 2.0 Ports | |
| 1 x LAN port, 3 x Audio Jack | |
| Internal I/O Ports | 4 x SATA III Connectors |
| 1 x USB 2.0 Header, 1 x USB 3.2 (Gen 1) Header | |
| 1 x 8-Pin Power Connector, 1 x 24-Pin Power Connector | |
| 1 x CPU Fan Connector, 1 x System Fan Connector | |
| 1 x Front Panel Header, 1 x Front Audio Header | |
| 1 x Clear CMOS Header, 1 x COM Port Header | |
| Hardware Monitoring | CPU/System Temperature Monitoring |
| CPU/System Fan Monitoring, Smart/Manual CPU Fan Control | |
| CPU/DDR Voltage Monitoring | |
| Form Factor | Micro ATX (18.5cm x 22.6cm) |
| OS Support | Windows 10 (64bit) / 11 (64bit) |
| Bundle Software | BullGuard |
| Accessories | 2 x SATA Cables, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide |
