B07-S1XY-QMJ
| Brand | ViewSonic |
| Screen Size | 27 Inches |
| Resolution | FHD 1080p |
| Aspect Ratio | 16:9 |
| Screen Surface Description | Matte |
| Model Number | TD2760 |
| Resolution | 1920 x 1080 |
The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and a full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10/11, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA mount design, offering additional convenience for use as a wall-mount display. Additionally, the RS232 port provides local control for other RS232 connected devices, while HDMI CEC offers local control of multiple connected devices such as HD set-top boxes, media players, and sound systems. Even more, the ergonomic stand makes it easy for the user to tilt and raise the monitor, or lay it flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with Energy Star certification saves energy costs while reducing carbon emission. *Supports Windows 7/8/10/11, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, and commercial use.
10-Point Multi-Touch
Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast color from 178° all around, whether you are looking at the screen from above, below, the front, or the side.
SuperClear® 178°/178°
A flexible ergonomic stand makes it easy to adjust this touch monitor for optimal comfort and viewing. Simply tilt, raise, and lower the monitor for the most natural position, or lay it completely flat to create a comfortable working environment.
Tilt, Raise, Lay flat

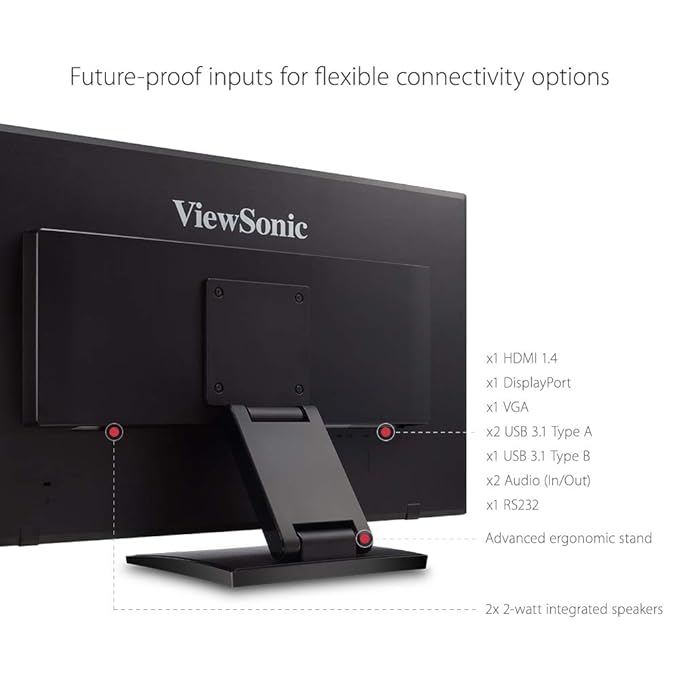

DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
DisplayPort, HDMI, VGA
A superior MEGA dynamic contrast ratio better defines the relationship between the darkest and brightest colors, ensuring that this monitor delivers an incredibly immersive experience with accurate, rich, and vibrant images.
Maximized Color & Contrast
Cross-platform compatibility with a wide range of operating systems including: Windows 7/8/10/11, Linux, Chrome, and Android*. *Supports Windows 7/8/10/11, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0
Windows 7/8/10/11, Linux, Chrome, Android
RS232 offers local control for set-top boxes, and other RS232 connected devices. The HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices directly through the display.
HDMI CEC, RS232
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Dual Integrated Speakers
The TD2760 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.
Energy Star & EPEAT
Flicker-Free Technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.
Blue Light Filter, Flicker-Free
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
100mm x 100mm
|
|
|
|
Display |
Display Size (in.): 27 Viewable Area (in.): 27 Panel Type: VA Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 3,000:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 6ms Response Time (GTG w/OD): 6ms Response Time (Typical Tr+Tf): 12ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ) Pixel Pitch: 0.311 mm (H) x 0.311 mm (V) Touch Screen: Projected Capacitive, 10-point multi-touch Surface Treatment: Anti-Glare, Hard Coating (≧6H) Cover Glass Thickness: 1.88mm |
Compatibility |
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 |
Connector |
VGA: 1 USB 3.2 Type A Down Stream: 2 USB 3.2 Type B Up Stream: 1 3.5mm Audio In: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 DisplayPort: 1 Power in: 3-pin Socket (IEC C14 / CEE22) RS232 In: 1 |
Audio |
Internal Speakers: 2Watts x2 |
Power |
Eco Mode (Conserve): 19W Eco Mode (optimized): 22W Consumption (typical): 26W Consumption (max): 28W Voltage: AC 100-240V Stand-by: 0.3W Power Supply: Internal Power Supply |
Additional Hardware |
Kensington Lock Slot: 1 |
Controls |
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
Operating Conditions |
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% |
Wall Mount |
VESA Compatible: 100 x 100 mm |
Input Signal |
Frequency Horizontal: 15 ~ 90KHz Frequency Vertical: 50 ~ 76Hz |
Video Input |
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2) Analog Sync: Separate/Composite/SOG - RGB Analog |
Ergonomics |
Tilt (Forward/Back): -4º / 90º |
Weight (imperial) |
Net (lbs): 17.4 Net Without Stand (lbs): 12.2 Gross (lbs): 22.6 |
Weight (metric) |
Net (kg): 7.9 Net Without Stand (kg): 5.5 Gross (kg): 10.2 |

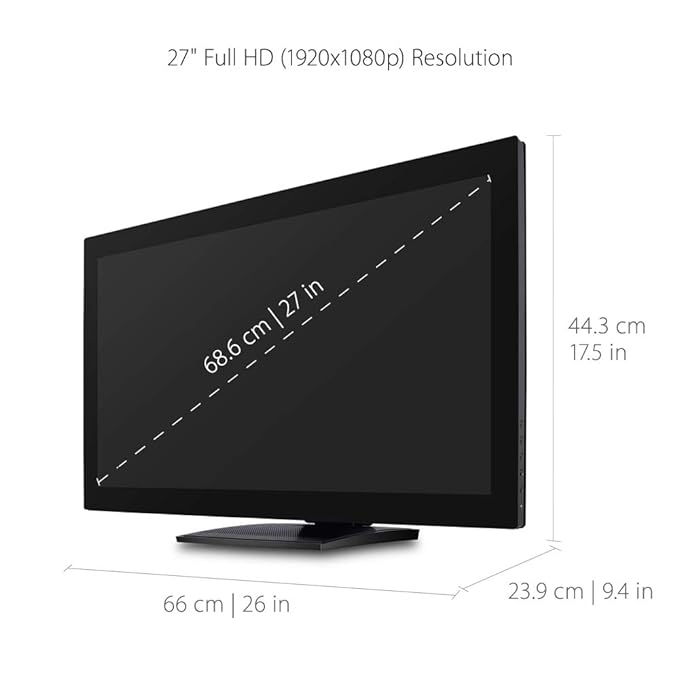

Dimensions (imperial) (wxhxd) |
Packaging (in.): 29.6 x 20.7 x 8 Physical (in.): 26 x 17.5 x 9.4 Physical Without Stand (in.): 26 x 16.2 x 2.3 |
Dimensions (metric) (wxhxd) |
Packaging (mm): 753 x 525 x 204 Physical (mm): 660 x 443 x 239 Physical Without Stand (mm): 660 x 410 x 58 |
General |
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS, CCC, China RoHS, China Energy Label, CECP PACKAGE CONTENTS: TD2760 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT |
